SPECIFICATION
Power consumption: 550W
Input voltage: AC 90V-240V,50-60Hz
Working position: any safe working position
Working postition temperature: -10-40 deg
Light source: OSRAM SIRIUS 371W discharge bulb
Lifetime:1500hours
CCT: 7650K
CRI>85
Lumen:18,000lm
FEATURES
Color wheels: 14 colors+white
Static gobo wheel: 13 fixed metal gobos + 1 animation effect gobos + white
5 kind of prisms: 32-facet prism ; 16-facet prism ; 8+16 faect prism; 2 linear prisms
( bi-directionally, rotatable, speed adjutsable )
Beam range: 2.8 °-6°
Pan movement range: 540°
Tilt movement range: 270°
Automatic Pan/Tilt position correction
8bit/16bit movement solution,optional
Dimmer: 0-100% linear dimming system
Frost: linear adjustable frost
Focus: linear adjustable focus
CONTROL:
DMX Channel: 16/19 CHs
Control mode: DMX512 control, Stand-alone, Master /Slave synchronization
CONSTRUCTION
Display: LCD Touch screen
Protection rate: IP20, for indoor use
Housing: heat-proof plastic module + hard metal ; black/silver/white color, optional

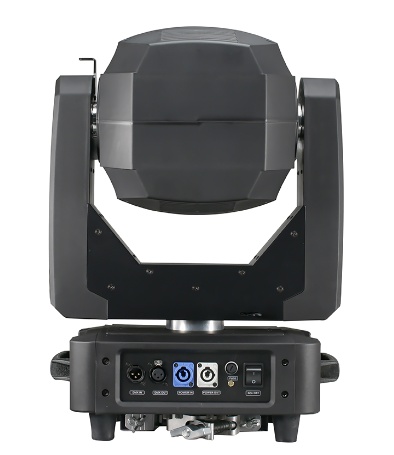

DMX link: 3 pin DMX in and DMX out
Power link: Powercon in and powercon out
PHYSICAL
Dimension: 638x396x260mm
Net Weight: 24.7kgs
