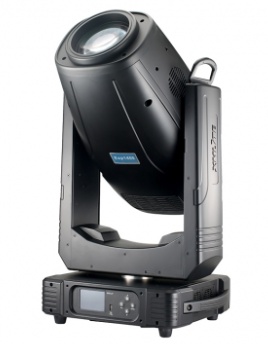

Modle: Exp1400
Channels mode: 37/41CH
Light Source
Lamp: OSRAM lok-it 1400-PS_Brilliant,CRI>90
Life time：750 hours
Light Source Luminous Flux：120000（min 110000）
Holder: PGJX28
power: AC200-240V,50/60Hz
Total power: 1800W;PF≥0.95
Optical system
Germany Reflector,Output lens size 130mm.
Beam angel：6-51°,linear zoom
Dimmer : 0-100%linear adjustment

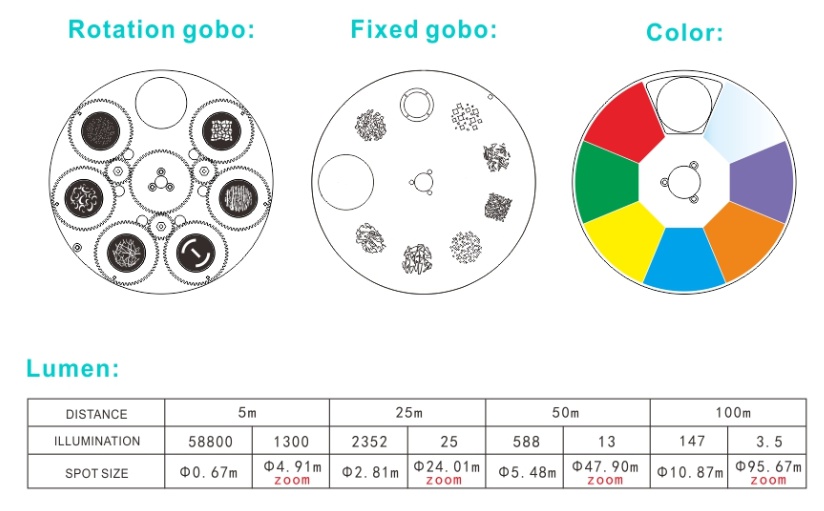

Color Wheels
7 fixcolors+white+CMY+CTO.CT:3200-6000K
Prism System
4 facet prism ,Frost function
Fixed gobo: 8 gobo+ white
Rotation gobo: 6gobo+ white,changeable
Control & Screen
Display: 3.5 inchcolor LCD display, can reverse 180°
Cut: 4 plates.After cut ,the pattern can rotation 180°
Iris: Disphragmadjustable
Retrieving magnetoelectric positioning system has
higher accuracy and reliable performance.
USB connector canset DMX address with power and
upgrade the software.
Aperture:mechanical linear aperture, adjustable spot size.
Lamp control:electronic bright and blow out, turn off and s
hut down for 8 seconds, thenstart the ECO power down mode.
PAN & TILT
Pan ：540°; 8Bit/16Bit
Tilt:270°; 8Bit/16Bit
Size & Weight
Product size: 482x372x870 mm
Flycaes: 680x705x940 mm
N.W: 41KG
