Voltage: 100V~240V 50/60Hz
Power : 350W
Channel : 16DMX channel
Color wheel : One color wheel , 14 colors plus white
Gobo wheel : One fixed go-bo wheel , 17gobo plus white
Effect wheel : One rotate 8-face prism, fog effect
Dimer : 0~100% mechanical dimmer , speed adjustable and strobe
macro fuction
Three phase motor , quiet smooth movement
Through control to power on and power off the lamp.
Adopt Photoelectric reset system, when mistake occasional , the light can reset automatic.
Pan 540∘ , resolution 8Bit/16Bit
Tilt 270∘ , resolution 8Bit / 16Bit
IP20
Size 535 * 400 *410mm
N.W : 17kg

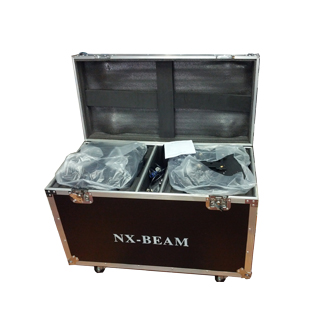

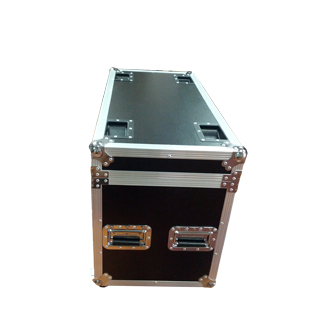

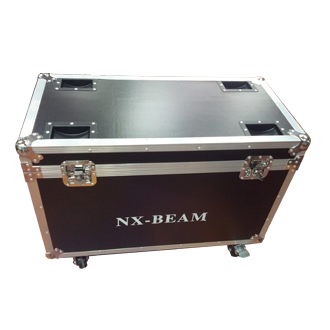

2p 하드 케이스 포함
Channel sheet
CH1 : Pan scan
CH2 : Tile scan
CH3 : Pan fine
CH4 : Tile fine
CH5 : Pan/Tilt speed
CH6 : Strobe
CH7 : Dimmer
CH8 : Color sheet
CH9 : Color sheet slide
CH10 : Gobo
CH11 : Gobo sheet slide
CH12 : Fog effect
CH13 : Focus
CH14 : 8-face prism
CH15 : Prism rotate
CH16 : ( 100-105 Lamp off ) (200-205 Lamp on ) (255Reset)
