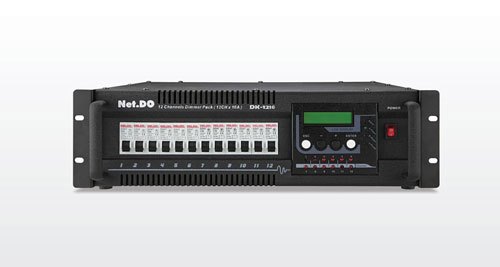

DK1216 12 channel digital dimmer, 16A per channel
DMX512/1990 standard.
Magnetic ring with a high anti-jamming, excellent anti-jamming capability of audio/ video almost no interference.
Switch insurance, with over-current automatic shutdown protection.
When DMX512 signal is broken off, every channel's output can be hold.
High precision zero-crossing sampling, the output consistency of channels is better.
9 dimming curves: Every channel is chosen independently.
PreHEAT adjustable to every channel.
It can store 9 scenes that can be preset, manual dimming independently without any console.
Power-down data retention, boot soft start to prevent the boot transient output.
Electrical automatically adapt the original frequency, range: 45 ~ 65Hz.
LCD display with backlight.
Power supply: Tri-phase or mono-phase operation: AC220V±10%, 45 ~ 65Hz.
Size: 485mm x 485mm x 145mm
