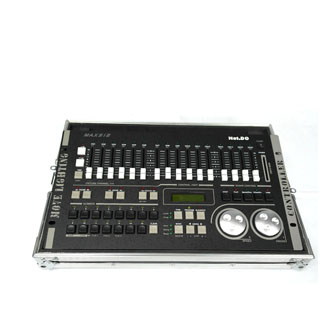

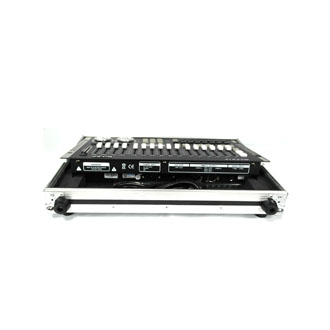

MAX512 MOVING LIGHT CONTROLLER:
l DMX512/1990 standard, 512 DMX channels, output with optical isolated.
l Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.
l Uses can allocate DMX channel to each intelligent Fixture dynamically.
l The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.
l Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.
l 30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.
l 6 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.
l Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
l LCD display with backlight.
l Power supply: AC 90-250V / 50-60Hz
l Size: 485mm x 267mm x 85mm
